Rock Core Drilling Rig

Product Description

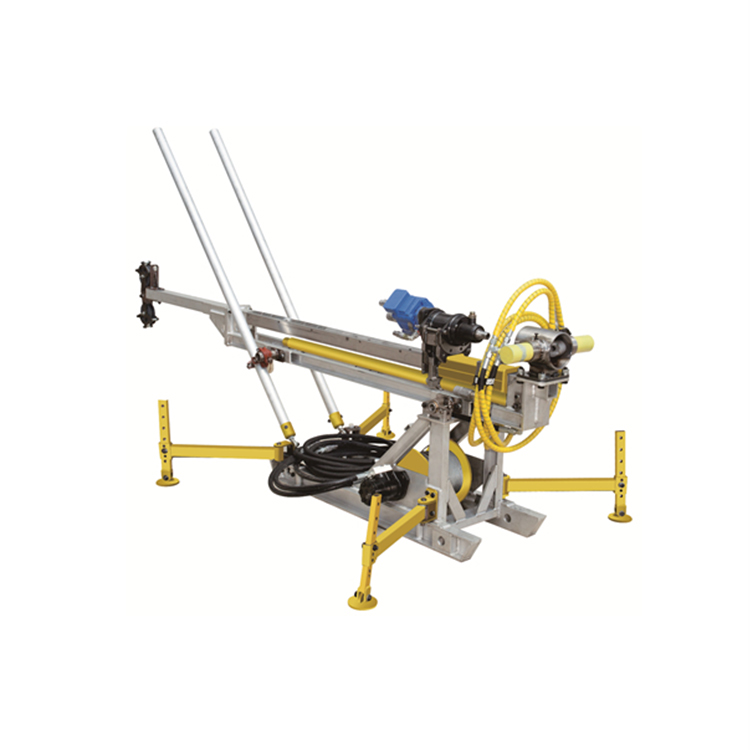

MCDP200 Small Hydraulic Core Drilling Rig is one high-efficiency core drilling machine that is lightweight, easy to operate and it applies modulized design, suitable for drilling in mountain areas and remote areas. It features low consumption and cost-saving function,and it has great portability for its compact and lightweight structure, ideal for more mineral exploration. Also, it is very environmentally friendly, so you don't have to worry it will break your rules about environment protection during your processing activities. A small Hydraulic Core Drilling Rig can be your most practical and economical choice!

Application:

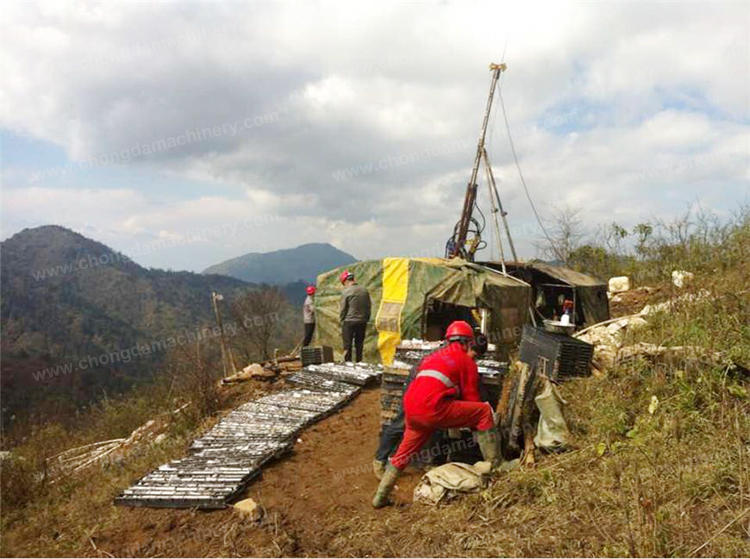

widely used in mineral exploration, infrastructure construction (i.e.railway, road, and bridge, etc.), hydraulic and hydropower
project, tunnel exploration, and geographical investigation. It works particularly well in areas with complex geographic characteristics such as mountainous regions, forests, and plateaus. It is the ideal drilling rig when operating in
hard-to-accessories within a depth of 200 meters, executing small projects, conducting initial investigations, and working on
tight schedules.

Technical Data:

Drilling depth capacity	HQ/NTW/BTW Rod Length 1.0m	30/100/200m
Hole Diameter		96/75.7/60mm
Core Diameter		63.5/56/42mm
Power engine	KUBOTA D1105.T, 23.5KW/3000RPM
Hydraulic system	American Parker valve, water cooler
	Maximum pressure 20Mpa/max, Maximum flow 54L/min
Top drive rotation head	Maximum torque	400N.m
	Maximum rotation speed	1300rpm
	Feed travel	1.27m
	Pull/Thrust	33KN/24KN(Single cylinder)
Winch	Average speed	150m/min
	Lift	600kg
	WIre Diameter	5mm
	WIre accommodation	240m

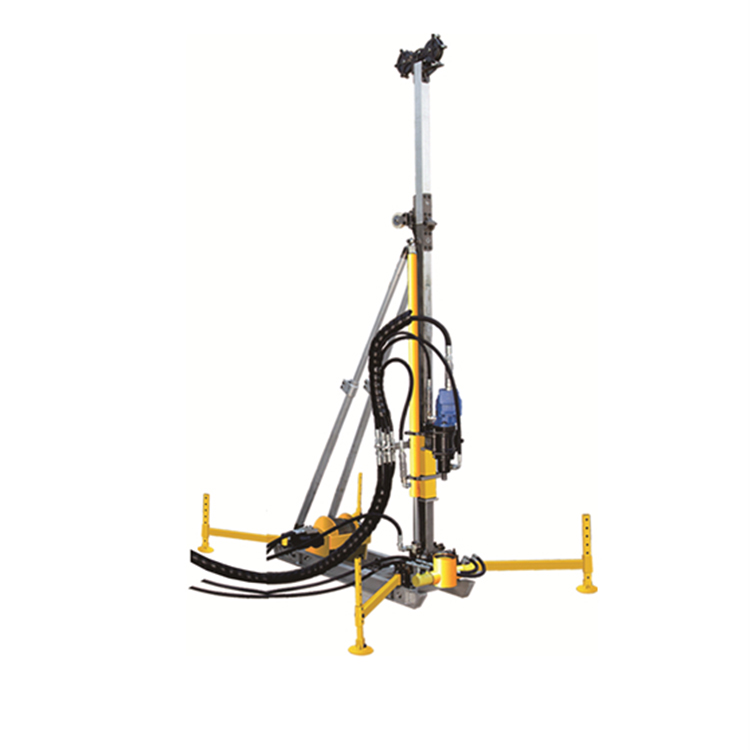

Mast	Height of the mast on a 90 degree	3.8m
	Drilling angle	45º-90º(standard )
		0º-90º(option )
Size and weight	Platform area/Module quantity	2.5m×2.5m×3.8m/4 pcs
	Gross/Maximum module	513kg/176kg

Advantage:

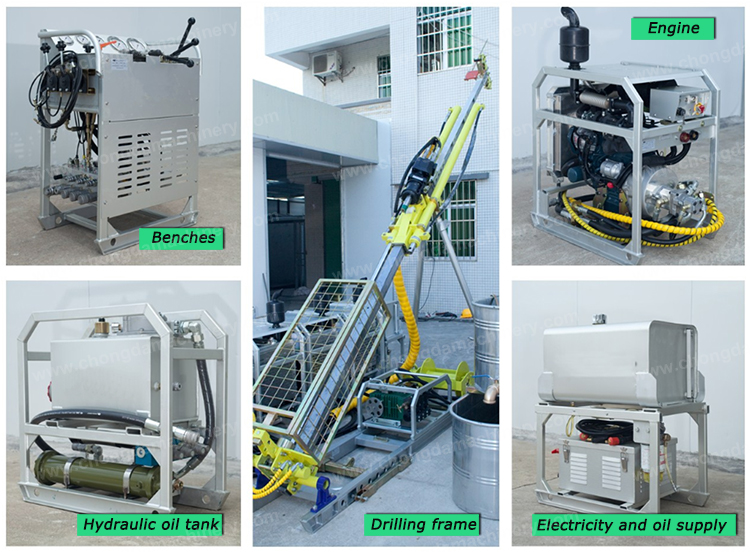

1.Lightweight structure: Its modulized design with the heaviest piece weighing only 120kg achieves great portability.
2.Aviation aluminum materials are used for more than 90% of the framework.
3.Easy to relocate with the capability of being assembled/disassembled within only 20 minutes.
4.Thin wall rods, low resistance, and speed penetration.
5.Excellent – Long stroke cylinder, easier to control than the chain.
6.Global leading brands ensuring stability and reliability.
7.Cost-efficient – No road construction; No infrastructure construction; Time-saving.
8.Hydraulic coring and drilling; No drilling tower; Energy saving.

Delivery:
1.Our workers will strictly implement our packing system to ensure that the products are not damaged during transportation.

2. There are many modes of transportation to ensure that products reach customers on time.

Delivery Way	Delivery Time
By air	About10-20 days days after leaving the port
By sea	About20-30 days days after leaving the port
