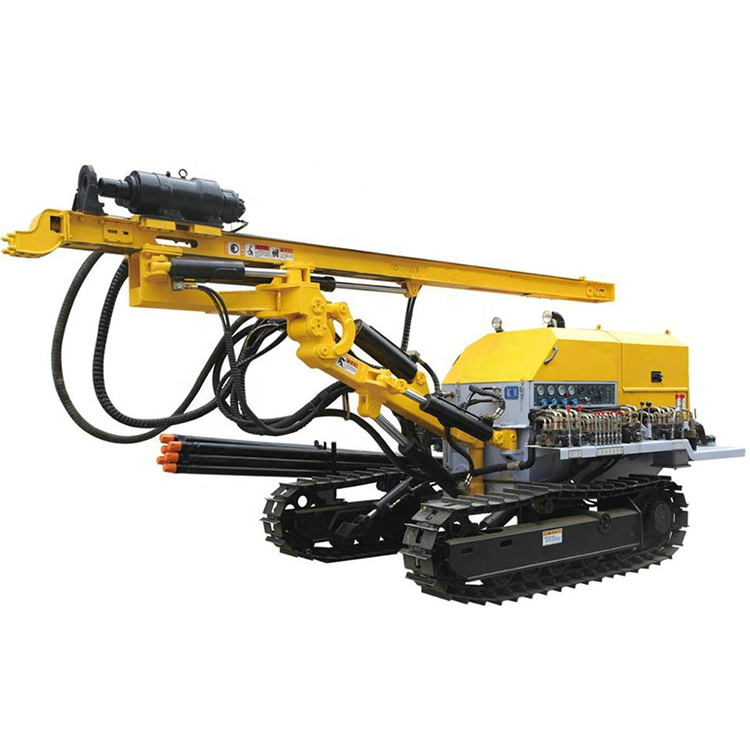

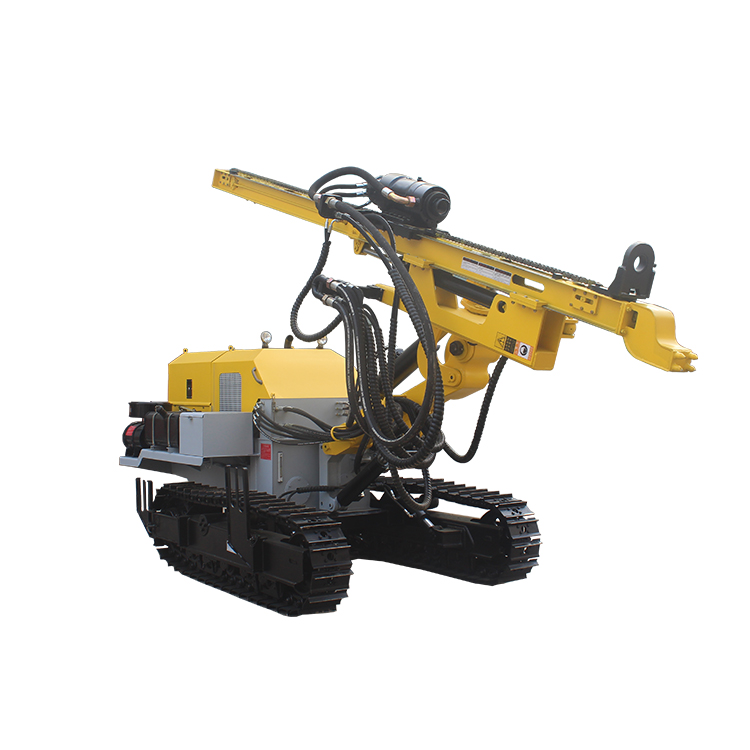

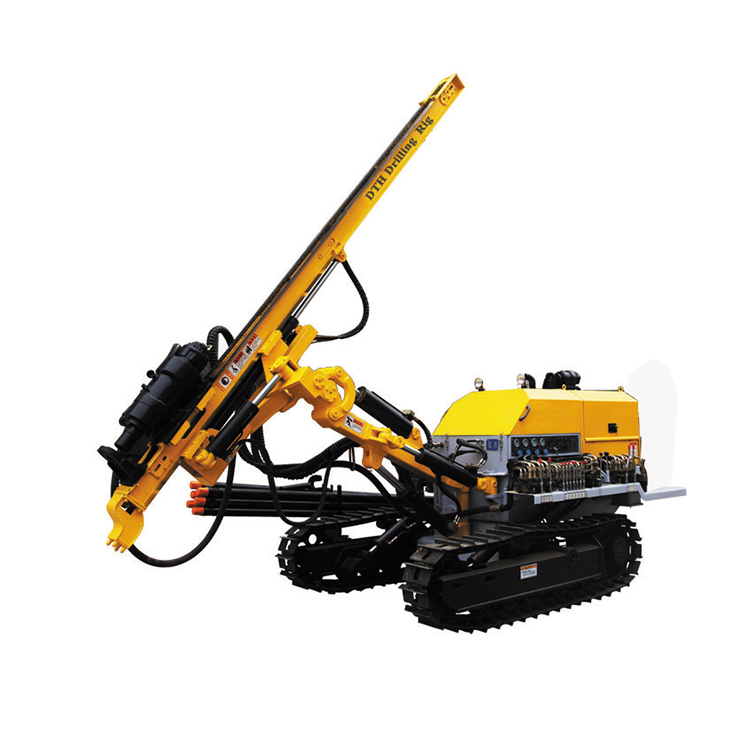

Anchoring slope protection drilling rig

Technical Data:

Wind pressure(Mpa)	1.2—2.46
Air consumption(m³/min)	10--20
Drilling diameter(mm)	115---165
Drilling depth(m)	down 60-80m
Once promotion distance(mm)	3000
Drill diameter(mm)	76
Skid compensation(mm)	1200
Maximum lift force(N)	26000
Guide shell lift angle(°)	up and down total 100
Guide shell swing angle(°)	Left and right total 100
Boom lift angle(°)	up and down total 70
Boom swing angle(°)	70
Grade ability(°)	30
Chassis ground clearance(mm)	300
Travelling speed(Km/h)	0-2.5
Back to the transit speed(r/min)	0--90
Rotary torque(N.m)	3100
Host Power(kw)	56
For rock	6---20
Total Weight(kg)	4800
Dimension (L * W * H)	5270*1950*2400

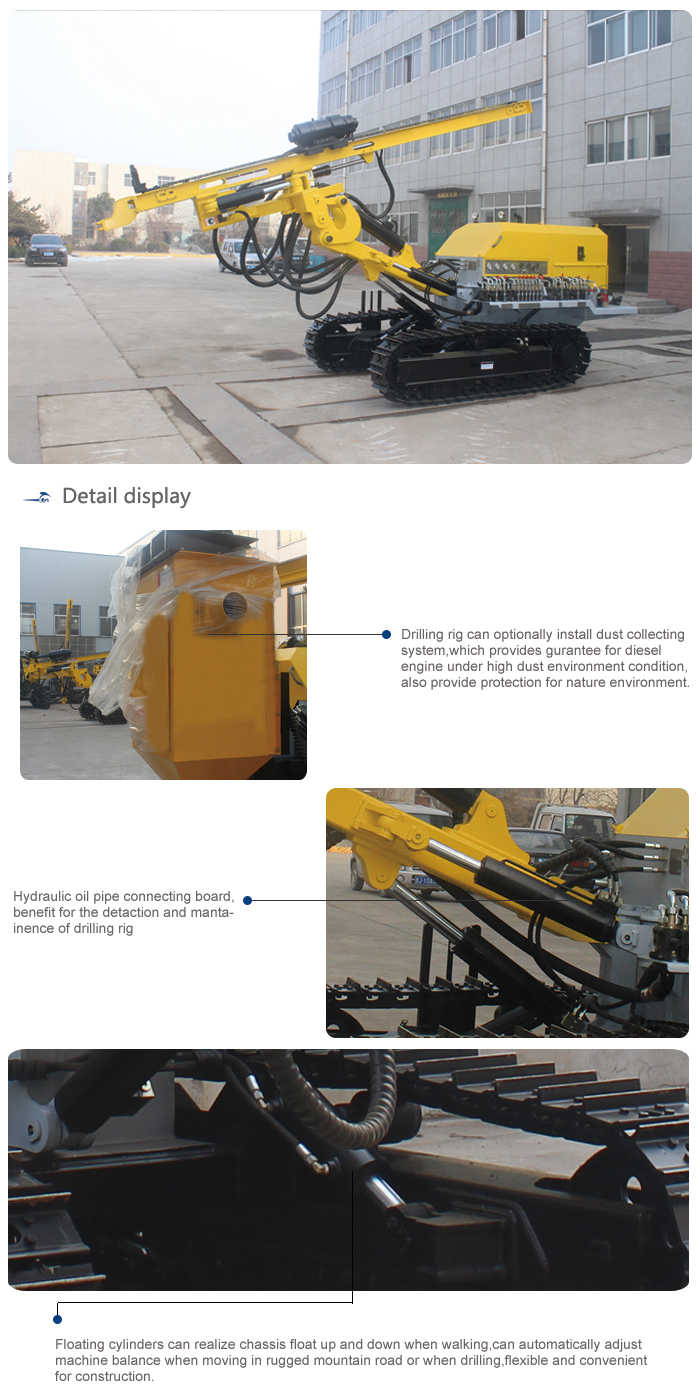

Advantage:
1.this drilling machine hydraulic motor with low rotation speed, large torque
2.this drilling rig Adopt oil cylinder propulsion, make sure stable performance
3.Two stage air filter ensure the air quality, and prolong the lifetime of the diesel
4.Multiple valve control system, easy to operate
5.Monitoring the pressure of hydraulic and propulsion automatically
6.this blasthole drilling rig has crawler tensioning device to ensure the reliability of the operation
7.this hydraulic bore hole drilling machine has spotlight to make night work and maintenance convenient
8.this drilling machine is compact structure, safe to operate.
9.this blasting drilling rig has the mobile and flexible climbing ability with perforation shift convenience features, suitable
for rugged venue operations.
10.Whole diameter 105-165mm, with a piercing, high efficiency, Maintenance is simple, high reliability.

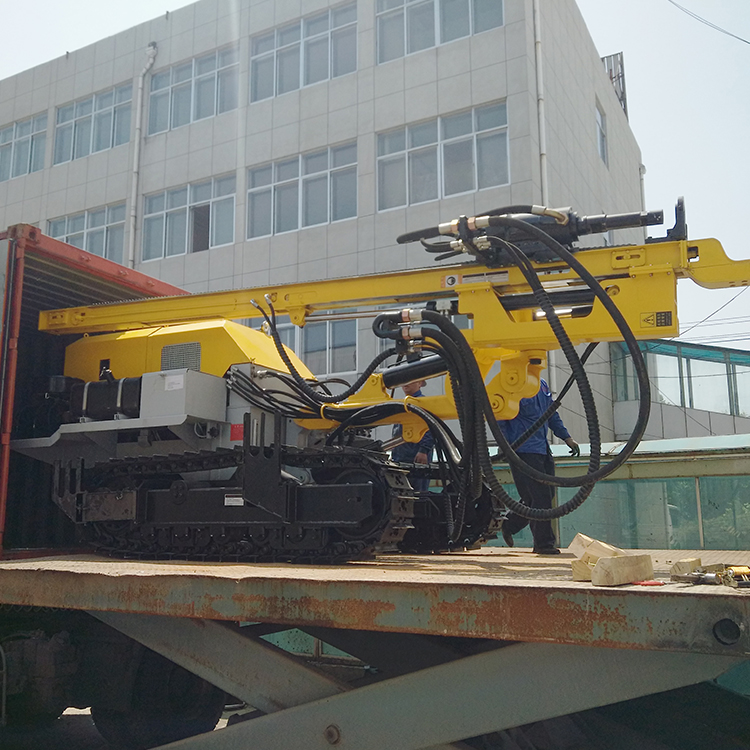

Delivery:
1.Our workers will strictly implement our packing system to ensure that the products are not damaged during transportation.
