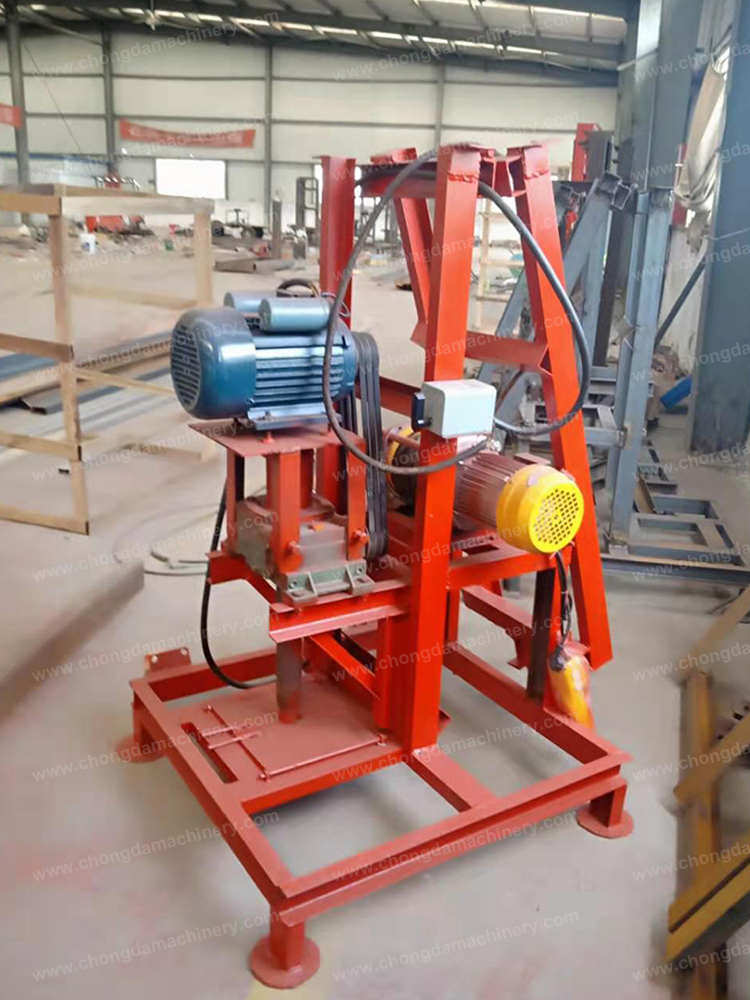

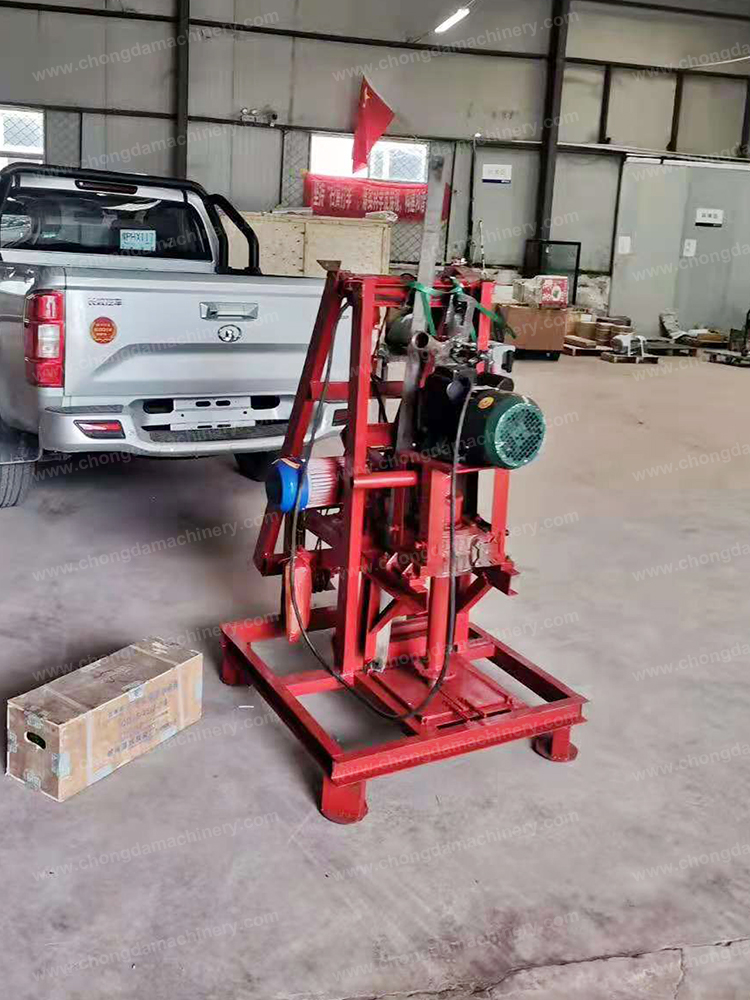

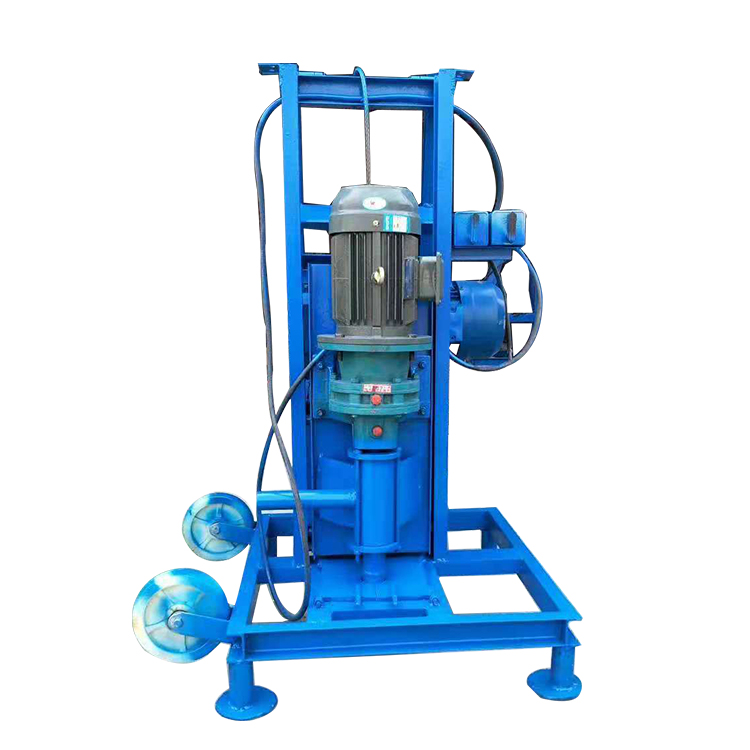

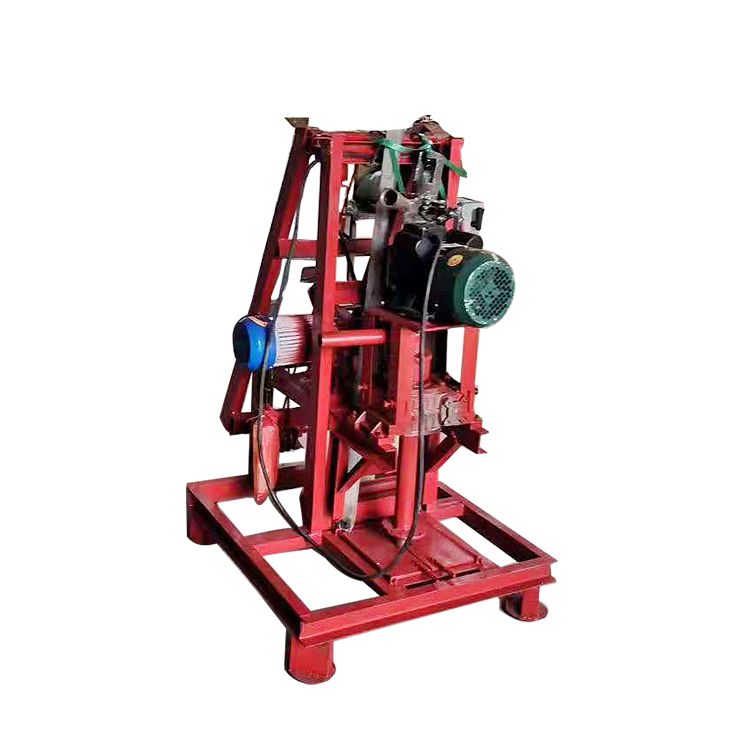

Small Water Well Drilling Rig

Product Description
1. An area of small, light weight, after dismantling the longest no more than 2 meters, small tricycle installed under the maximum quality of less than 40 kg, a person moving.
2. Removable design, 50mm column steel frame support, more secure, more solid.
3. Drilling head parallel shaft reducer structure design, low noise, do not jump teeth. Smooth and reliable operation. Water
supply activities leading precision machining. The axle load-bearing design, hanging bear strong, more scientific and secure.
4. To enhance the chassis with stamping links, installation more convenient

Application:

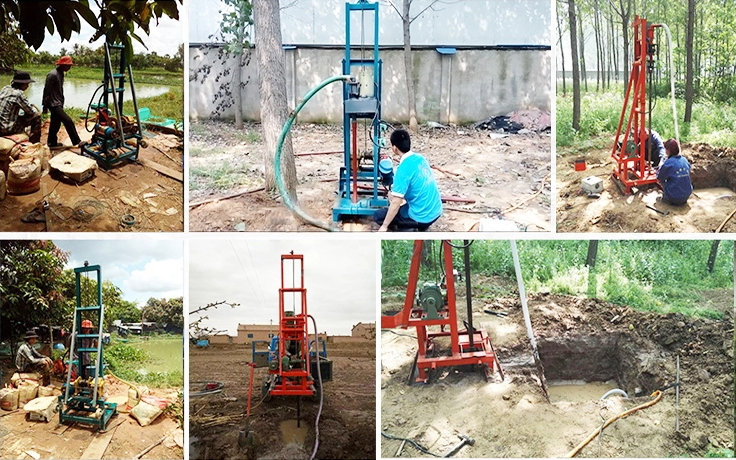

Mainly apply to farm irrigation,garden irrigation,drinking water well drilling,boring drilling etc,it can drill 100-300mm diameter
and Max 120m depth,it can apply to different stratum, such as sand,soil,clay,soft rock and so on

Technical Data:

Model of drilling machine	FCD120
Max. Drilling Diameter	100-300mm
Max.Drilling Depth	120m
Driving motor Power	60V 1500W
Lifting motor power	60V 1500W
Capacity of hoist	1000KG
Water pump	220V,2.2KW,12m3/min flow ,46m head of delivery
DC potential transformer	60V-80A DC ,Charging transformer
Diameter of Drilling Rod	42mm
Dimension	700X700X2400mm
Weight	200KG
Drilling Rod Length	1.5m/piece

Delivery:

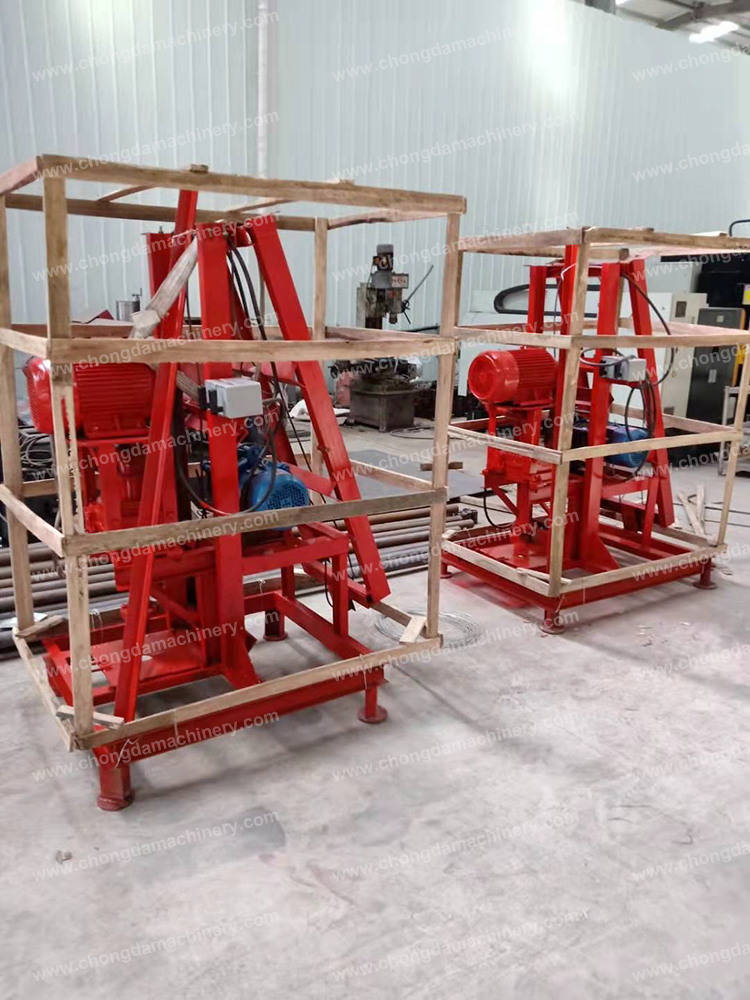

1.Our workers will strictly implement our packing system to ensure that the products are not damaged during transportation.

2. There are many modes of transportation to ensure that products reach customers on time.

Delivery Way	Delivery Time
By air	About10-20 days days after leaving the port
By sea	About20-30 days days after leaving the port
