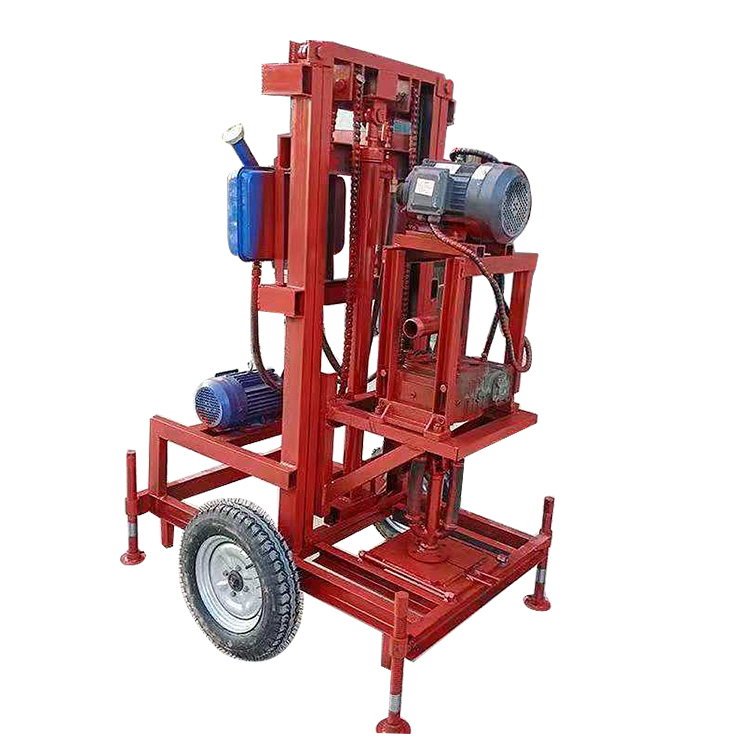

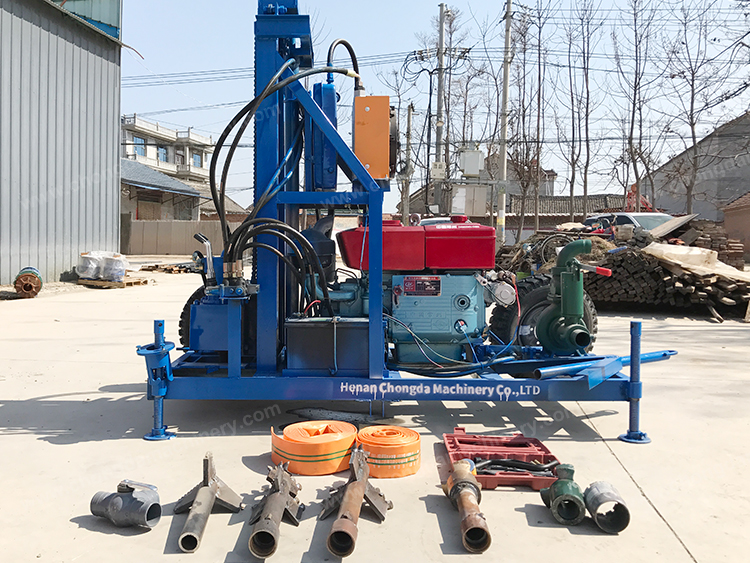

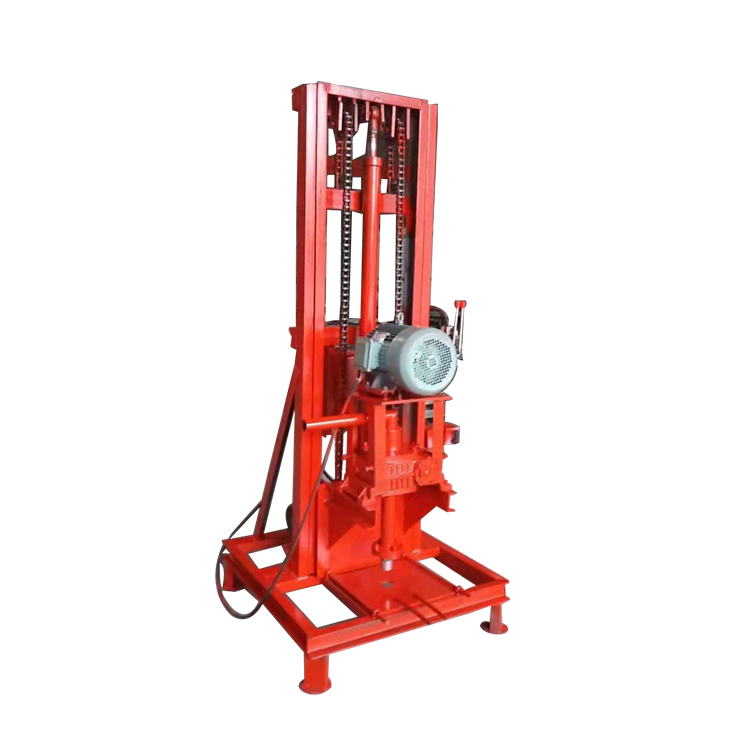

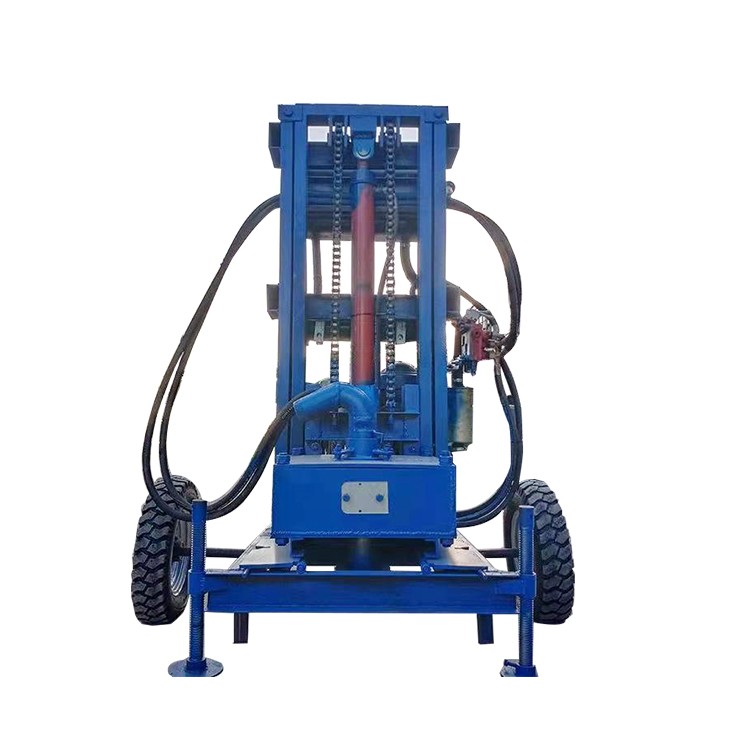

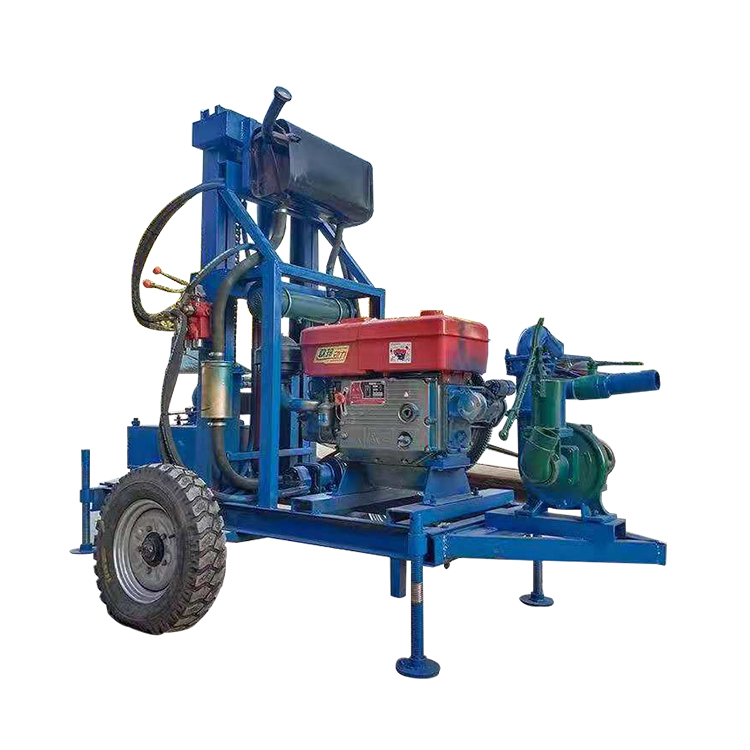

Deep Well Drilling Rig

Product Description
This water well drilling machine mainly apply to geothermal drilling, farm irrigation,house yard, gardens ,water well drilling and drilling etc,it can drill 70-450mm diameter , Max 200m depth,It also can be used in small building piling, like farmhouse or factory, the drilling diameter can reach 450mm ,it can apply to different stratum, such as sand,soil,clay,soft rock and so on.

Application:

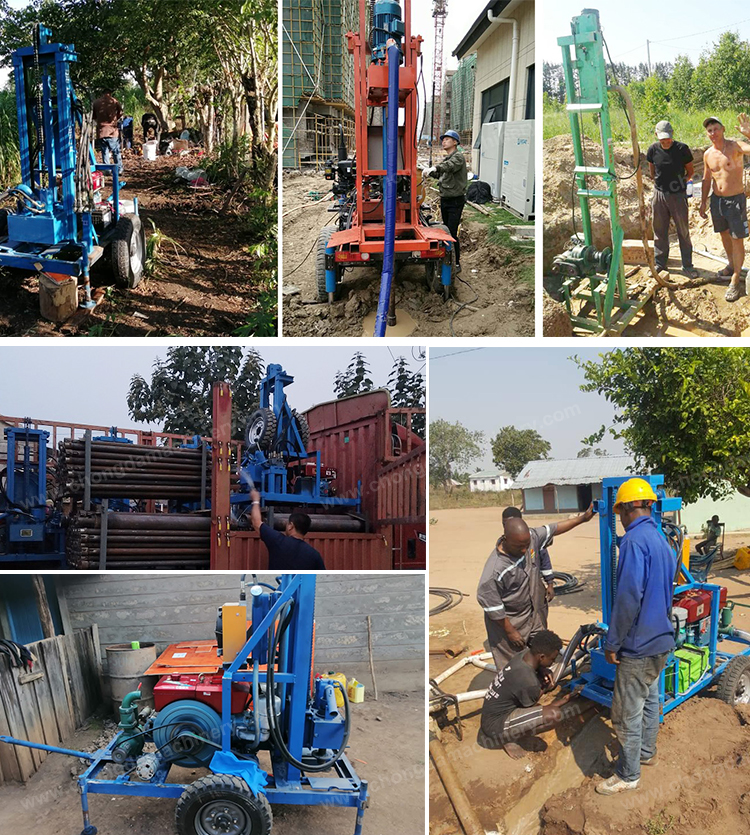

Widely used for geothermal drilling, farm irrigation,house yard, gardens ,water well drilling and drilling etc.

Technical Data:

Model of drilling machine	TCD200
Drilling machine overall dimension(mm)	1800*1000*2000
Weight of Drilling machine (kg)	1000
Drill rod diameter (mm)	Ø50
Drill rod length(mm)	1500
Rod change method	Full automatic screw thread
Drilling depth(m)	150
Diesel Motor Power (Hp/kw)	22/16.2
Drilling method	Percussive and rotating type
Drilling hole diameter(mm)	Within Ø 300mm
Stroke distance (mm)	2000
Hosting capacity (kg)	1500KG

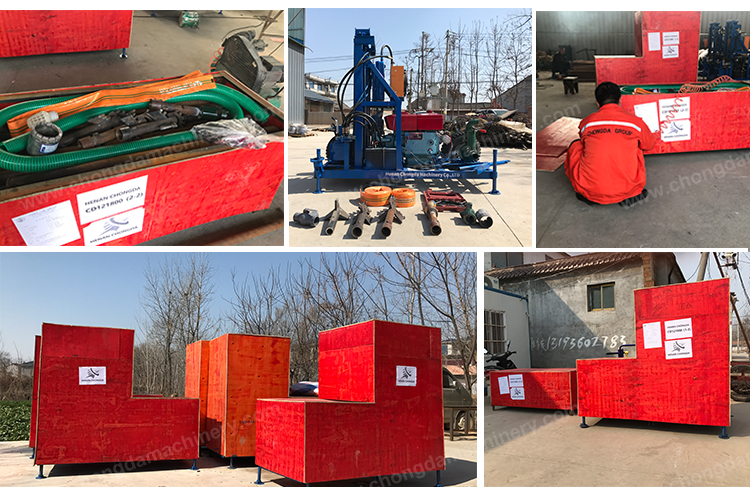

Delivery:
1.Our workers will strictly implement our packing system to ensure that the products are not damaged during transportation.

2. There are many modes of transportation to ensure that products reach customers on time.

Delivery Way	Delivery Time
By air	About10-20 days days after leaving the port
By sea	About20-30 days days after leaving the port
