300m Well Drilling Rig

Product Description

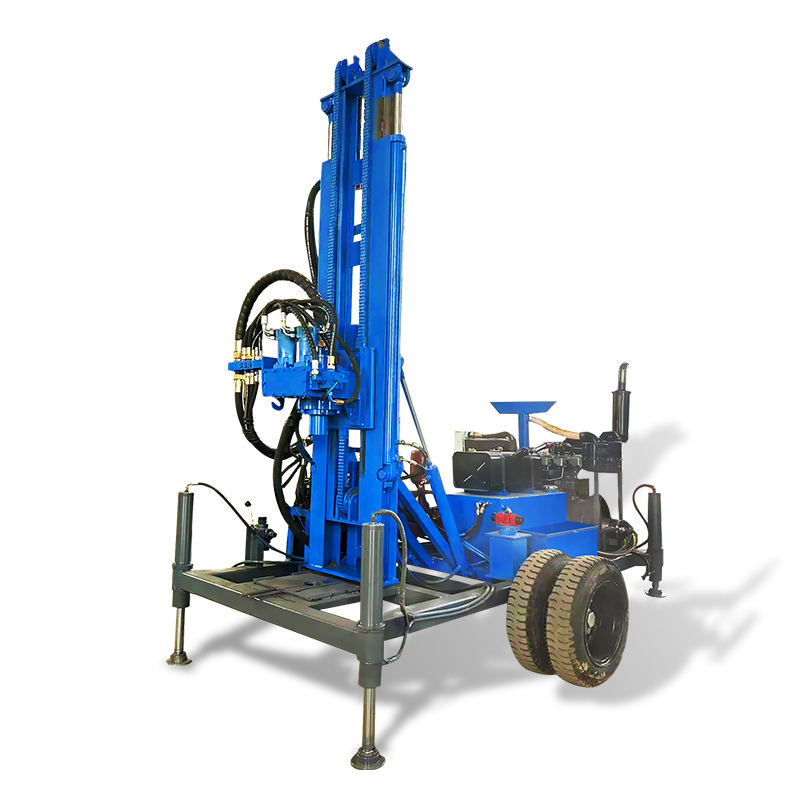

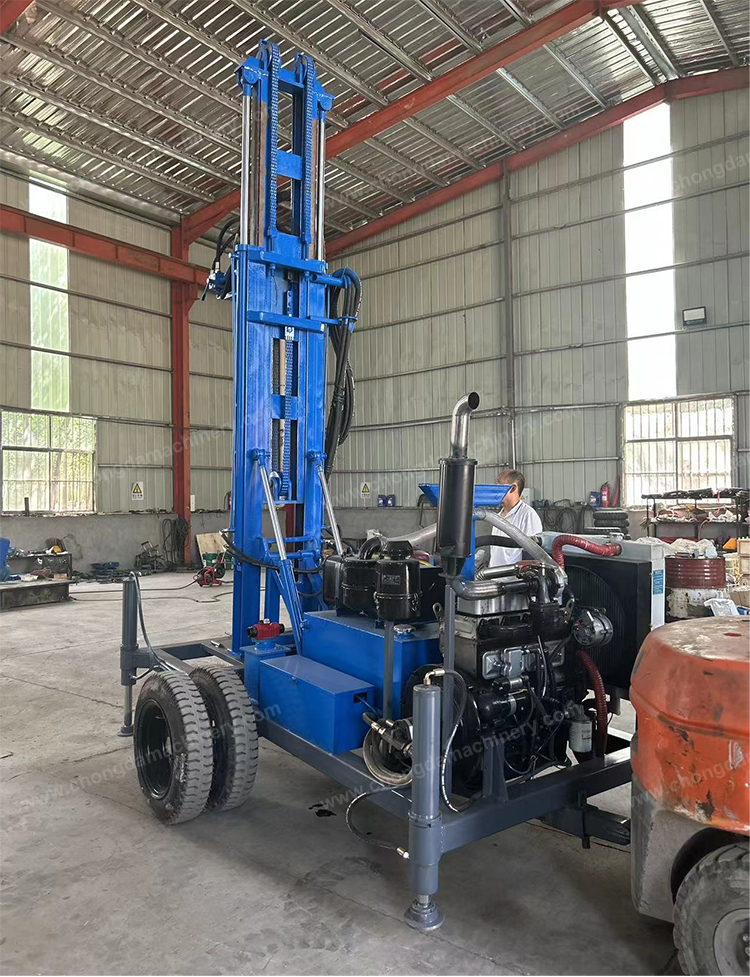

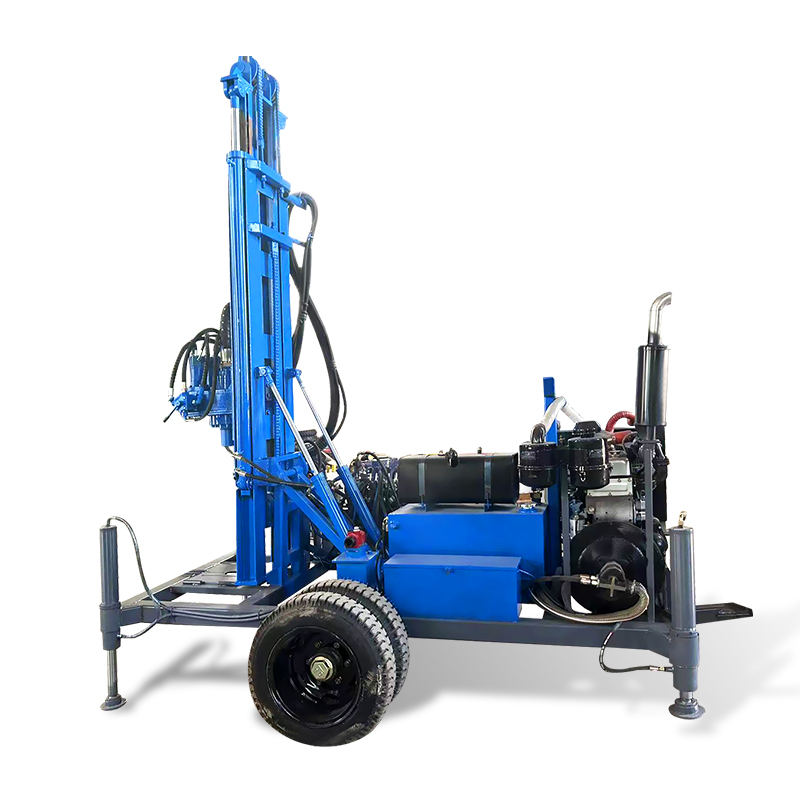

TCD800 drilling machine, come with 4 hydraulic legs, the top head driving, work with mud pump. This well drilling rig is compact fully hydraulic, for rotary drilling up to 300meters, it has the character of light weight, high efficiency, multi-function.
1, this drilling rig is a light, efficient and versatile drilling well machine.

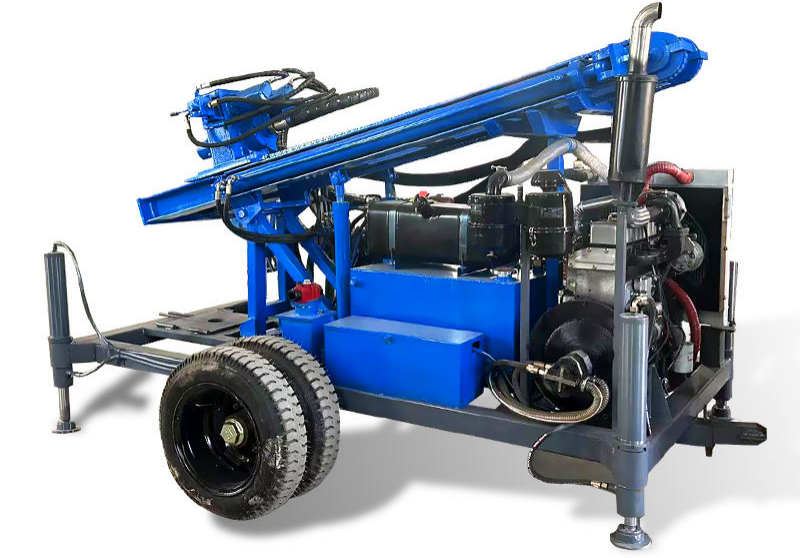

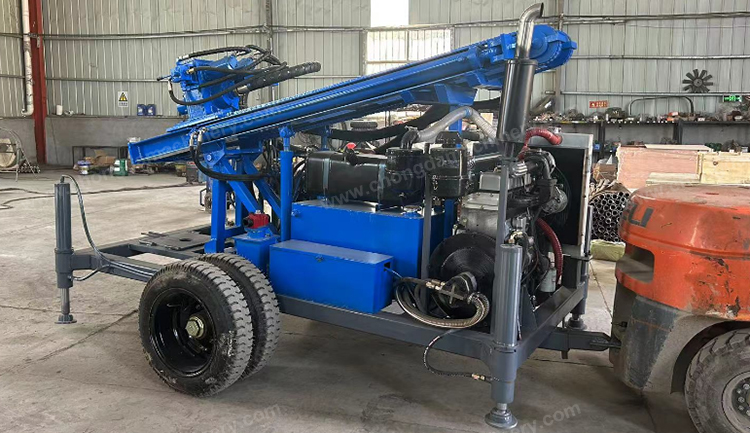

2, The drilling rig adopts two-wheeled trailer type, which makes the transition convenient and quick.
3, it is one very economic and practical well drilling machine. The economic benefits created for the users are extremely impressive.

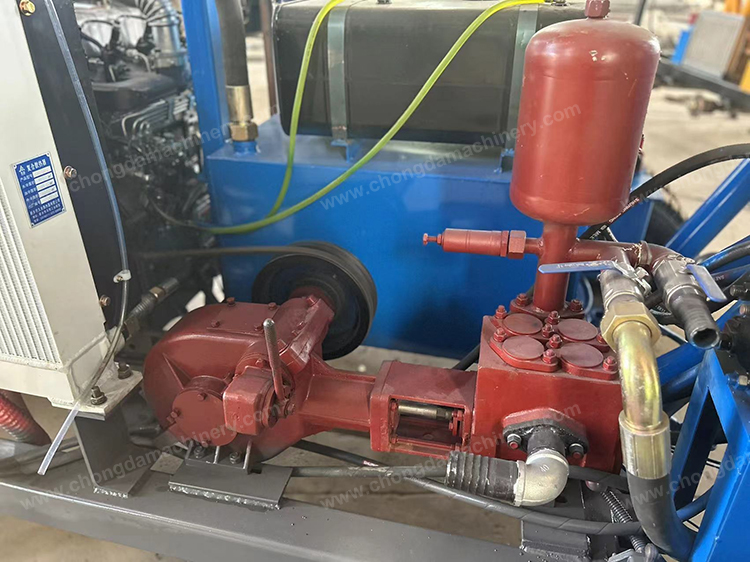

4, this drilling well machine can work with both mud pump or air compressor, can drill on hard rock layer, it can work efficiently under various geological structures.
5, It is the most popular machine meeting most requirements for a combination drilling machine, able to complete rural water supply wells in sediments and hard rock.
6, the well drilling machine weight is about 2.7ton, which allows it to be pulled by a pick-up
7, This drilling rig is compact in structure and convenient to carry. The whole machine adopts full hydraulic drive and has a low failure rate.
8, this water drilling rig is a diesel engine for power, which can be used in any area, especially the place where electricity is not available.

Application:
Widely used for geothermal drilling, farm irrigation,house yard, gardens ,water well drilling and drilling etc.

Advantage:
1. Drilling depth can reach 300m
2. Steels quality is good, torque is large
3. Easy operation, free-maintaining
4. For various complex stratum, such as pebble bed, aggregate bed.
5. Saving money, compact construction, easy moving
6. Applicable to industry, residents drilling, ground drilling, large diameter, deep drilling, footage fast, flexible and efficient.

Technical Data:

Model of drilling machine	TCD800
Drilling machine overall dimension(mm)	3200*1600*2100
Weight of Drilling machine (kg)	2750
Drill rod diameter (mm)	Ø60,Ø76,Ø89
Drill rod length(mm)	3m/2m
Rod change method	Full automatic screw thread
Drilling depth(m)	300
Diesel Motor Power (kw)	60
Drilling method	Percussive and rotating type
Drilling hole diameter(mm)	Ø 95-450mm
Lifting capacity (t)	14.3
Torque (N.m)	5500-6500

Delivery:
1.Our workers will strictly implement our packing system to ensure that the products are not damaged during transportation.

2. There are many modes of transportation to ensure that products reach customers on time.

Delivery Way	Delivery Time
By air	About10-20 days days after leaving the port
By sea	About20-30 days days after leaving the port
