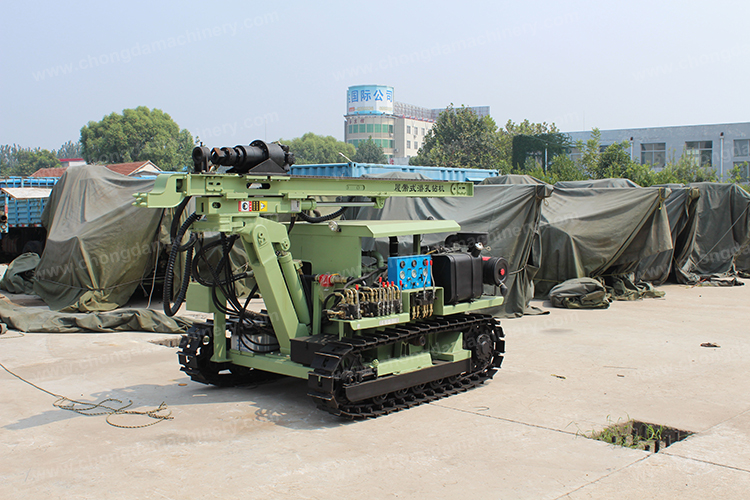

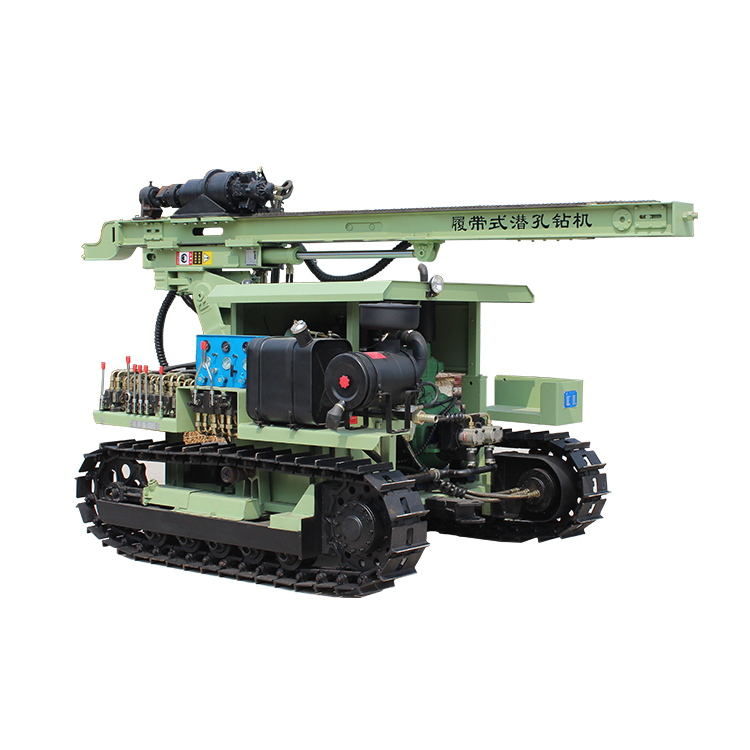

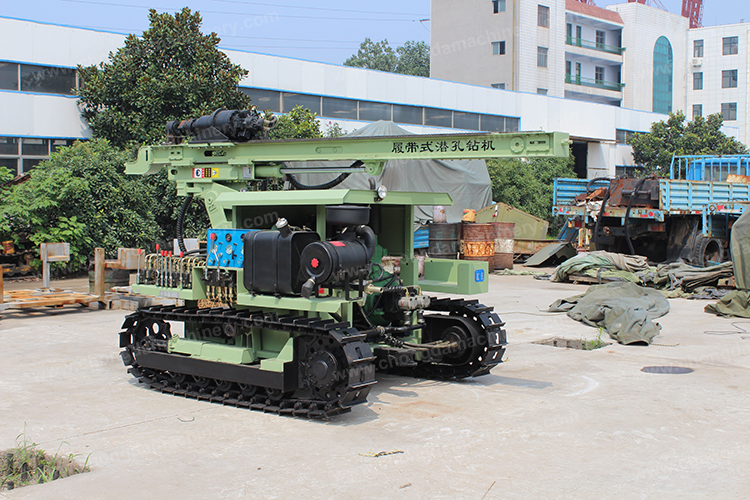

DTH Drilling Rig

Technical Data:

Bore diameter(mm)	90—140
Bore depth(m)	30
Walk speed(km/h)	2
Once promotion(mm)	2000
Grade ability (°)	30
Air pressure(Mpa)	0.7—1.4
Chassis ground clearance(mm)	260
Air consumption(m³/min)	7—15
Skid pitch(°)	Up and down100
Sliding tilt swing (°)	left35,right10
For rock(F)	6—20
Skid compensation(mm)	900
Dimension(L*W*H)(mm)	4300*2130*2160
weight(Kg)	2900
Diesel engine power	33KW Yuchai

Advantage:
1.this drilling machine hydraulic motor with low rotation speed, large torque
2.this drilling rig Adopt oil cylinder propulsion, make sure stable performance
3.Two stage air filter ensure the air quality, and prolong the lifetime of the diesel
4.Multiple valve control system, easy to operate
5.Monitoring the pressure of hydraulic and propulsion automatically
6.this hydraulic drilling rig has crawler tensioning device to ensure the reliability of the operation
7.this borehole drilling rig has spotlight to make night work and maintenance convenient
8.this drilling machine is compact structure, safe to operate.

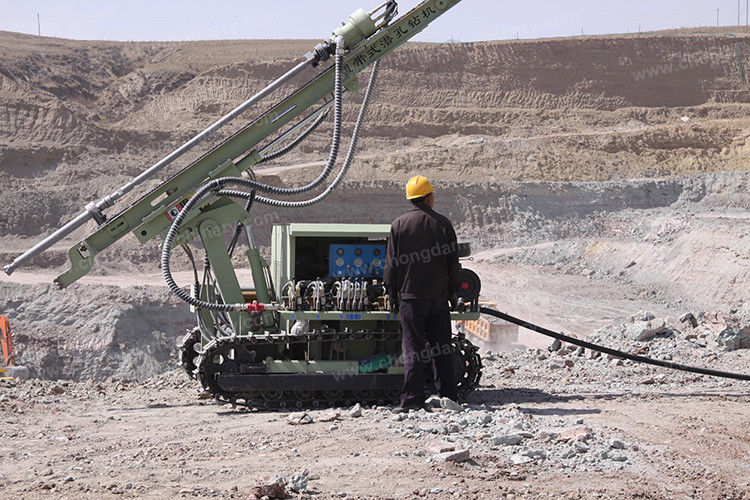

9.this DTH drilling rig has the mobile and flexible climbing ability with perforation shift convenience features, suitable for
rugged venue operations.

Delivery:
1.Our workers will strictly implement our packing system to ensure that the products are not damaged during transportation.
