Technical Data:
|
Diesel Engine
|
|
Model
|
Cummins 6BTA5.9-C180 (turbocharged and charge water cooled)
|
|
Displacement
|
5.9L (1.56 US Gallons)
|
|
Power
|
132Kw (180HP)
|
|
Rated RPM(Factory setting)
|
2200rpm
|
|
Drilling Capacity
|
|
BQ
|
1000m(3280feet)
|
|
NQ
|
700m(2296 feet)
|
|
HQ
|
500m(1640 feet)
|
|
PQ
|
300m(984 feet)
|
|
Mud Pump
|
|
Type
|
Reciprocating pump Triplex Plunger
|
|
Model
|
BW160/10
|
|
Stroke
|
70mm(2.76 inch)
|
|
Discharge pressure
|
2.5, 4.0, 6.5, 10.0 Mpa(363, 580, 943, 1450 psi)
|
|
Clamping Scope
|
55.5-110 mm(2.19-4.33 inch)through-hole Ф154mm(6.06 inch)
|
|
Weight (platform type)
|
9300 Kg(20506 lb)
|
|
Dimensions (L×W×H)
|
5100×2200×2650mm(200×86.6×104.3 inch)
|
|
Transport Way
|
Crawler
|
Advantage:

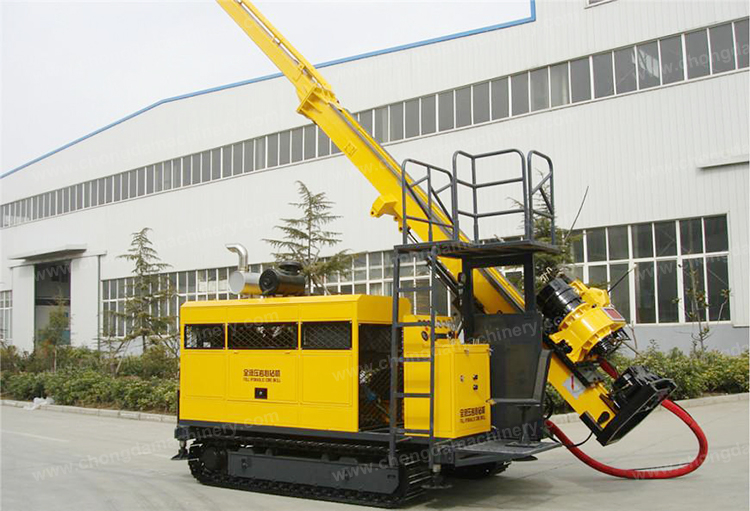

1, This hydraulic core drilling rig is equipped with a series motor driving the pump. The feeding and lifting of the rotatory are driven in the structure of the cylinder directly pushing, with a 3.5m (11.5 feet) stroke.
2, The rotation of the spindle is driven by a single-engine. It has four mechanical shifts of range of speeds, and the speed could be adjusted hydraulically with steeples change.
3, The hydraulic geological drill rig is simple in structure. It is light and easy for transference;
4, The mast has the functions of sliding and touching the ground;
5, The spindle lifted and lowered with hydraulic cylinder;
6, This core drilling rig could be folded for transport and relocation.
7, The spindle hole is in large diameter.
Delivery:
1.Our workers will strictly implement our packing system to ensure that the products are not damaged during transportation.
2. There are many modes of transportation to ensure that products reach customers on time.
|
Delivery Way
|
Delivery Time
|
|
By air
|
About10-20 days days after leaving the port
|
|
By sea
|
About20-30 days days after leaving the port
|
