Product Description

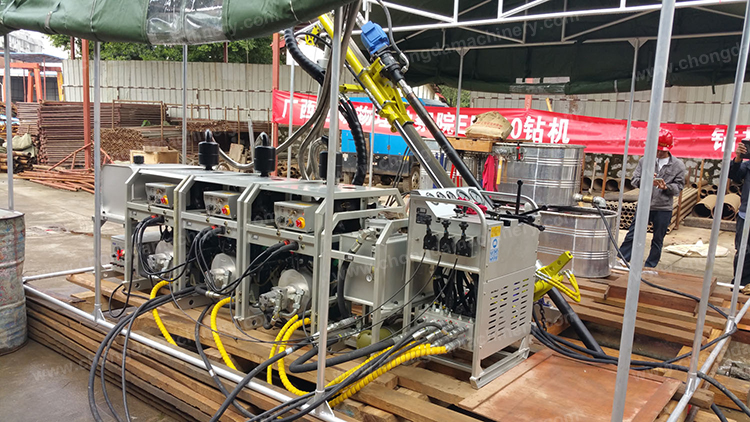

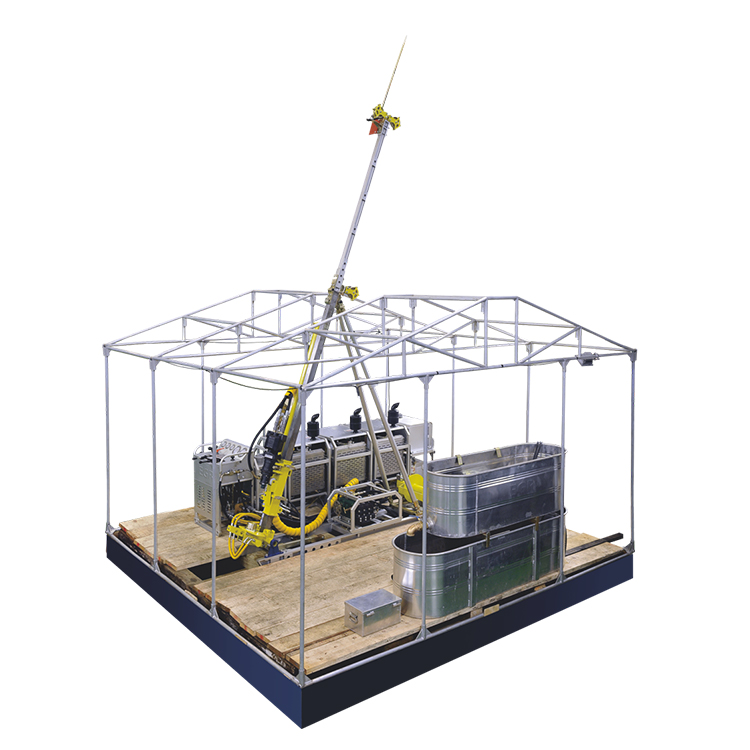

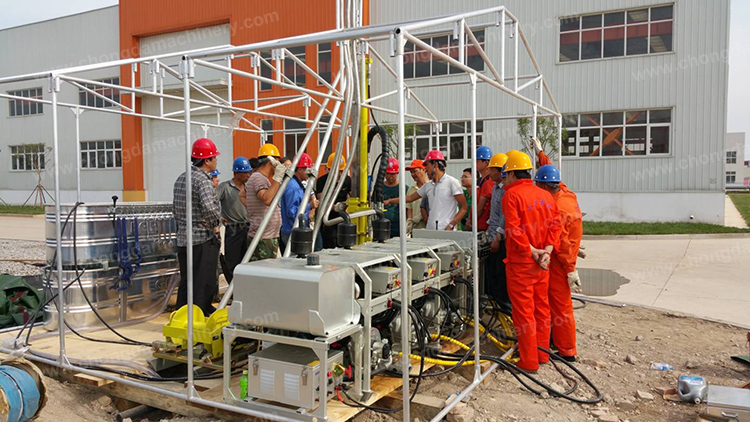

MCDP600 hydraulic portable core drilling rig is one of Chongda's core products. With its high efficiency and easy assembling capability, lightweight, easy operation, and modulized design, suit to drill in mountain areas and remote areas.
Application:
widely used in mineral exploration, infrastructure construction (i.e.railway, road, and bridge, etc.), hydraulic and hydropower

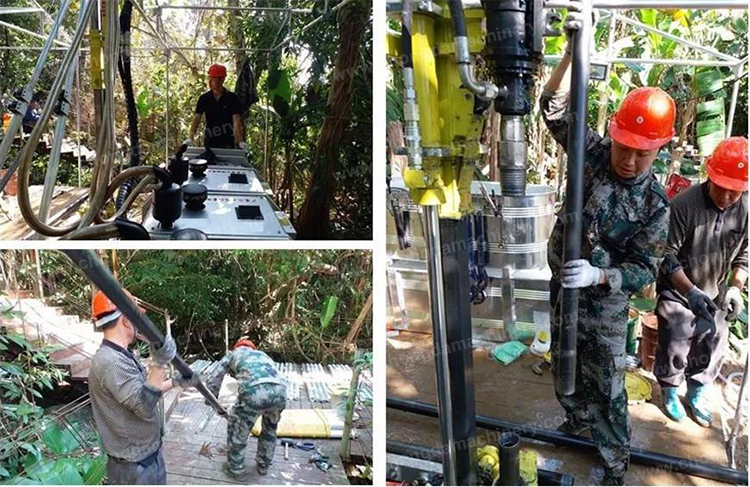

project, tunnel exploration, and geographical investigation. It works particularly well in areas with complex geographic characteristics such as mountainous regions, forests, and plateaus. It is the ideal drilling rig when operating in
hard-to-accessories within a depth of 600 meters, executing small projects, conducting initial investigations, and working on
tight schedules.
Technical Data:
|
Drilling depth capacity
|
HQ/NTW/BTW Rod Length 1.5m
|
100/300/600m
|
|
Hole Diameter
|
96/75.7/60mm
|
|
Core Diameter
|
63.5/56/42mm
|
|
Power engine
|
KUBOTA D1105.T, 3×23.5KW/3000RPM
|
|
|
American Parker valve, water cooler
|
|
Maximum pressure 21Mpa/max,Maximum flow 160L/min
|
|
Top drive rotation head
|
Maximum torque
|
650N.m
|
|
Maximum rotation speed
|
1300rpm
|
|
Feed travel
|
1.83m
|
|
Pull/Thrust
|
50KN/30KN(Single cylinder)
|
|
Winch
|
Average speed
|
150m/min
|
|
Lift
|
700kg
|
|
WIre Diameter
|
5mm
|
|
WIre accommodation
|
650m
|
|
Mast
|
Height of the mast on a 90 degree
|
5m
|
|
Drilling angle
|
45º-90º(standard )
|
|
Size and weight
|
Platform area/Module quantity
|
4m×4m/12 piece
|
|
Gross/Maximum module
|
1150kg/180kg
|
Advantage:
1.Easy to access, easy to assemble/disassemble, high-efficiency core drilling rig
2.Lightweight and portable diamond core drilling machine.
3.Modulized design with the heaviest module weighing only 180kg, able to be carried by only four persons.
4.Masts rig with the capability of drilling from an angle of 45 to 90 degrees. No tower is needed.
5.Lightweight machine with 80% of the framework being made of high-strength aluminum alloy materials.
6, Fast
Fast transportation – No need for road and infrastructure construction
Fast relocation – Only 2 hours required for the next hole
Fast penetration – 3 times higher than a vertical rig with a maximum daily penetration of 150 meters and an average daily
penetration of 70 meters
7, Reliable
All key parts are from the global leading brands, powerful, stable, and reliable
Integrated hydraulic system with no worries of leakage and malfunction
Unique mud system and special mud materials to increase drilling efficiency and reduce Accidents.
Delivery:
1.Our workers will strictly implement our packing system to ensure that the products are not damaged during transportation.
2. There are many modes of transportation to ensure that products reach customers on time.
|
Delivery Way
|
Delivery Time
|
|
By air
|
About10-20 days days after leaving the port
|
|
By sea
|
About20-30 days days after leaving the port
|
