Product Description

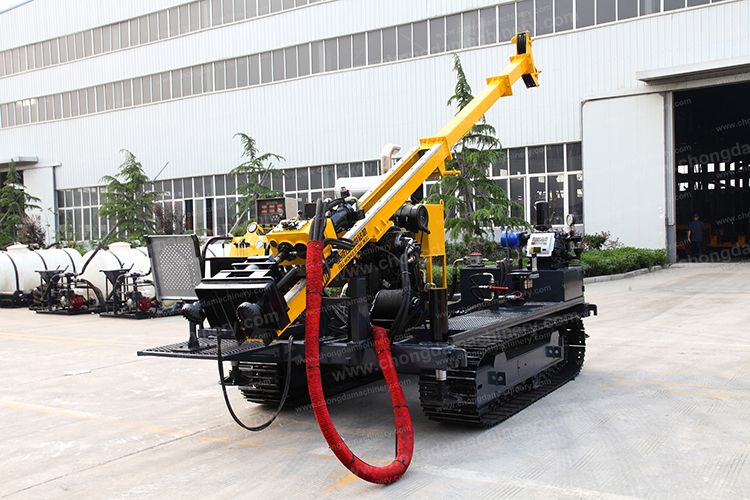

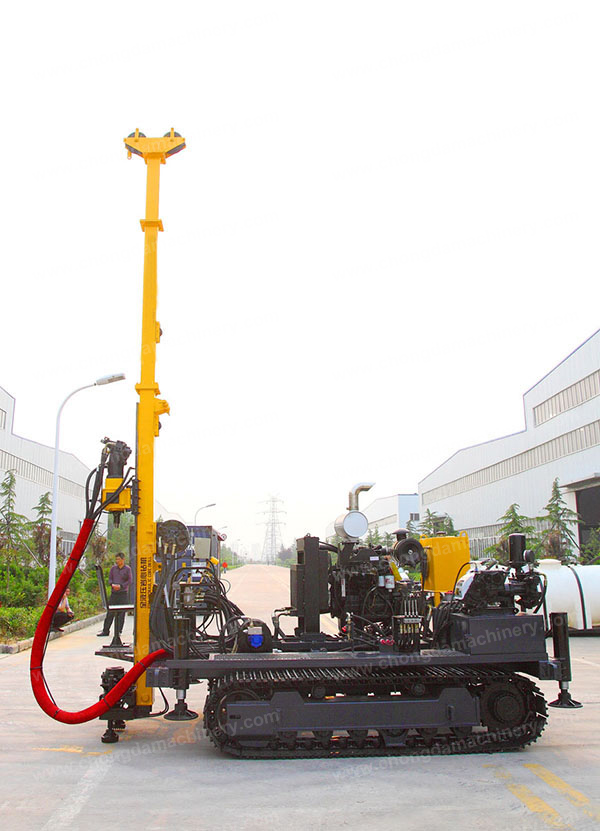

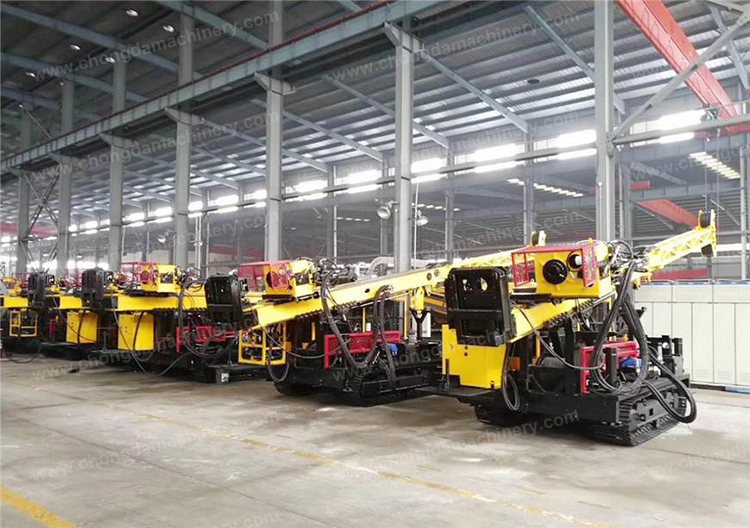

MCDX-2 full hydraulic portable drill rig is a kind of light rig designed for geological exploration in remote areas difficult to
enter. This portable drill rig is mainly suitable for diamond drilling with wireline coring technique. The rig consists of the
diesel power unit, hydraulic system, control panel, mast, and main winch, wireline winch, drill head, feed system, foot clamp,etc.
The MCDX-2 hydraulic drilling rig is completely hydraulically driven for all its surface coring functions. Fission style
design makes the rig in good assimilability and disassembles ability, facilitating transportation to most inaccessible areas.
Robust structure plus exact control system ensures high penetration rate and outstanding reliability.
Application:
widely used in mineral exploration, engineering geological subterranean, and water explorations.
Technical Data:
|
Diesel Engine
|
|
Power
|
74KW Cummins diesel engine
|
|
Speed
|
2200rpm
|
|
Drilling Capacity
|
|
BQ
|
400m
|
|
NQ
|
230m
|
|
HQ
|
120m
|
|
Drill Head
|
|
Max. spindle torque
|
334~1030Nm
|
|
Max. Spindle speed
|
0~900rpm
|
|
Feeding system (feed with hydraulic cylinder)
|
|
Feeding stroke
|
1700mm
|
|
Lifting capacity
|
50kN
|
|
Feeding capacity
|
25kN
|
|
The capacity of the main hoist
|
|
Lifting capacity
|
18kN (single-wire)
|
|
Lifting speed
|
84m/min
|
|
Rope capacity
|
30m
|
|
Steel wire diameter
|
12mm
|
|
The capacity of wireline winch
|
|
Lifting capacity
|
8.4kN (bare drum)
|
|
Lifting speed
|
90~240m/min
|
|
Rope capacity
|
500m
|
|
Steel wire diameter
|
6mm
|
|
Mud pump
|
BW-100A
|
|
Overall dimensions
|
3500*1500*1300 mm
|
|
Dimensions of the disassembled parts (without mud pump)
|
The largest part not more than 100kg
|
Advantage:
1.Full hydraulic and drill head model: the drill head rotation is realized with a duplex gear pump and four hydraulic pumps driven by a 74KW diesel engine; this also makes the feeding hydraulic cylinder system realize its full stroke feeding in both higher and lower speed;

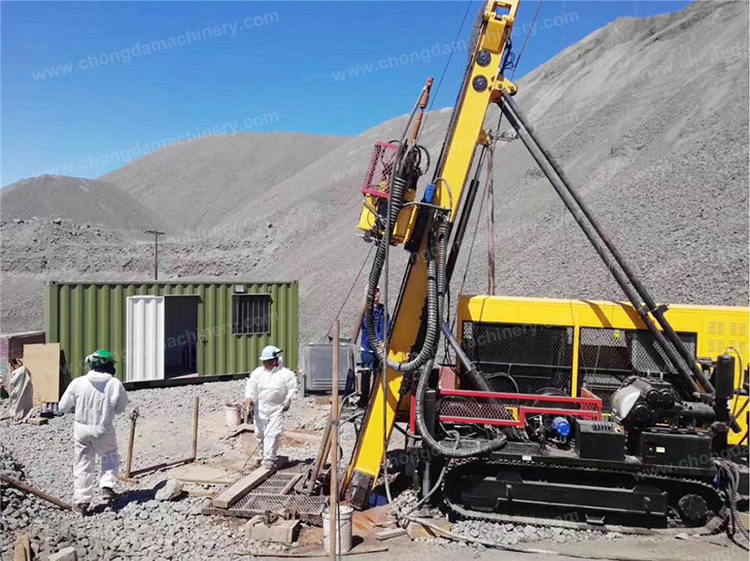

2.Crawler mounted, has the good climbing ability, easy to move, and can work in rugged ground operations; the rig can be applied and performed in narrow space for drilling of the hole at 45 degree~90 degrees with stronger adaptability;
3.Strong techniques adaptability: besides diamond drilling with wireline coring technique, it is in strong techniques
adaptability, it is applicable for the drilling and feeding requirements of any other stratum;
