Technical Data:
|
Items
|
MCD-2T
|
MCD-4T
|
MCD-42T
|
MCD-44T
|
|
Drilling depth
|
300-500m
|
700-1000m
|
700-1100m
|
700-1400m
|
|
Max. torque
|
3247 N.m
|
2740 N.m
|
3300 N.m
|
3300 N.m
|
|
Spindle stroke
|
560mm
|
600mm
|
600mm
|
600mm
|
|
I.D of spindle
|
96mm
|
68mm
|
93mm
|
93mm
|
|
Max. lifting capacity of spindle
|
60 KN
|
80KN
|
80KN
|
120 KN
|
|
Max. feeding force of the spindle
|
45KN
|
60KN
|
60KN
|
90KN
|
|
Max.Hoisting Force
|
30 KN
|
30KN
|
30KN
|
45KN
|
|
Diesel engine power
|
22kw
|
30kw
|
30kw
|
37kw
|
|
Drill tower height
|
8m
|
10m
|
10m
|
10m
|
|
Max.A load of the drill tower
|
75 KN
|
100KN
|
100KN
|
100KN
|
|
Adjusted angles of the drill tower
|
45°-90°
|
45°-90°
|
45º-90º
|
45º-90º
|
Advantage:
1. This series spindle-type core drilling rig is integrated with the main machine and the drill tower.
2. This core drilling rig has fast rotary speed and a broad rotary range. It can produce large torque at low speed.
3. This core drilling machine is lightweight for easy transport and convenient disassembly.
4. With a compact structure and reasonable layout and exposed components, it is easier for maintenance and repair.
5. It is convenient for you to treat trouble with two reverse speeds.
6. With a low center of gravity, the rig is reliable and stable in high-speed drilling.
7. All the operation levers are concentrated, hence its operations are reliable and convenient.
8. Fitted with meters, the drilling rig can easily control the condition inside the hole.
9. The transmission part of the drill rig and the mud pump is separated. Therefore it is easier for the location arrangement with less space occupying.

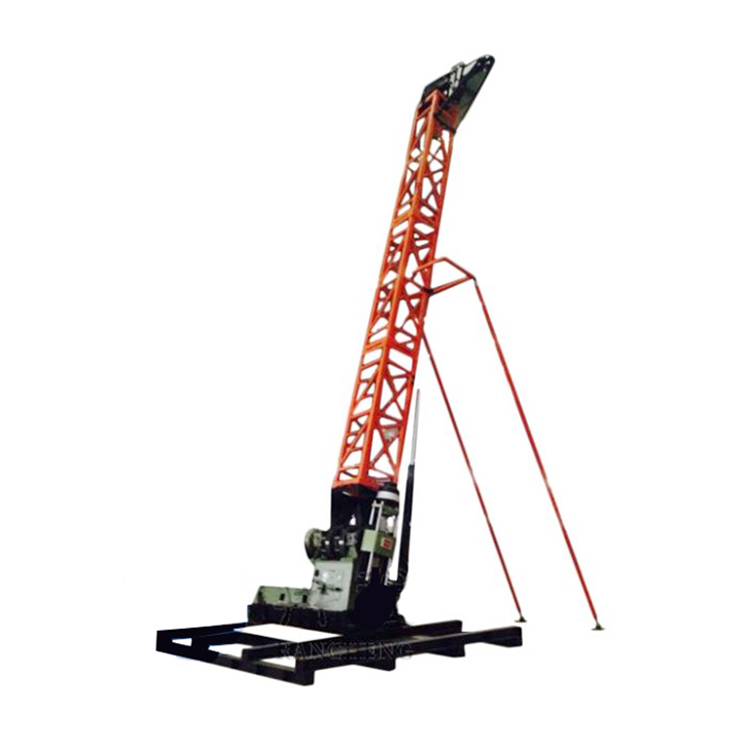

10, The drill tower is pyramid-mast type. Being light in overall weight, the single component being light and limited in
disassembly quantity, the tower is convenient for transportation and installation. The tower has its own crown block convenient, for ground installation. When the rig is moved back during operation, the tower can be inclined to make up the moved-back distance so as to guarantee the central line between the centers of the hole and pulley.
11, The tower can be adjusted in a clock-wise direction for drilling inclined holes. The adjustment is convenient for making and wide in adjusting range. It is suitable for drilling large-angle holes.
