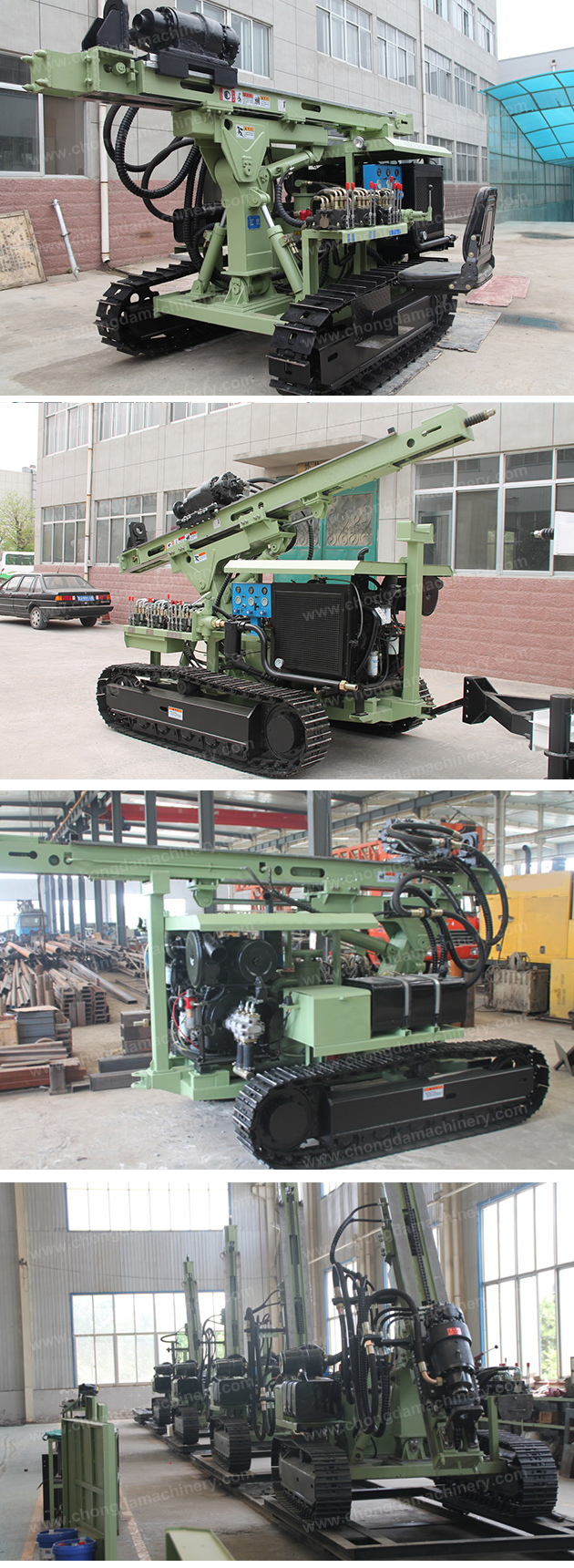

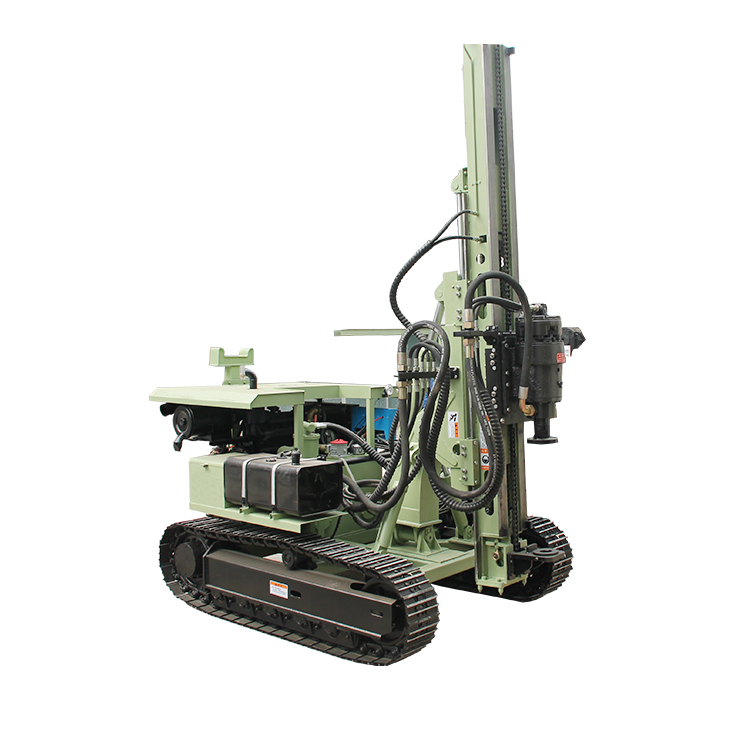

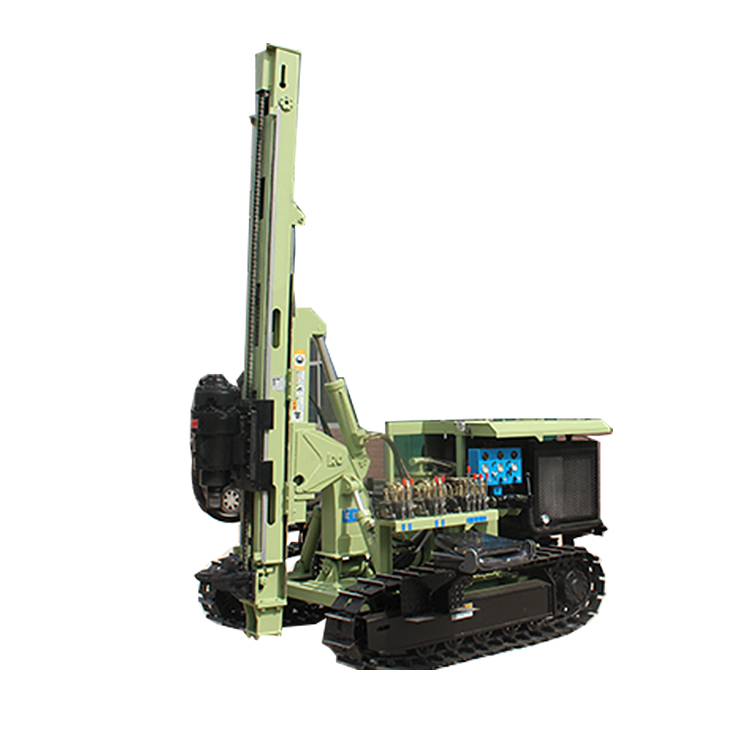

Product Description
MCD130Y is one multi-functional drilling rig ,top head driving ,has different drilling way ,such as mud pump rotary drilling ,airDTH drilling ,auger pile drilling ,solar pile installation ,PV solar pile ground screwing etc ,widely used in many different
projects.
This drilling rig use new type of hydraulic technology, low consumption, large rotary torque, convenient hole deflection.
Application:

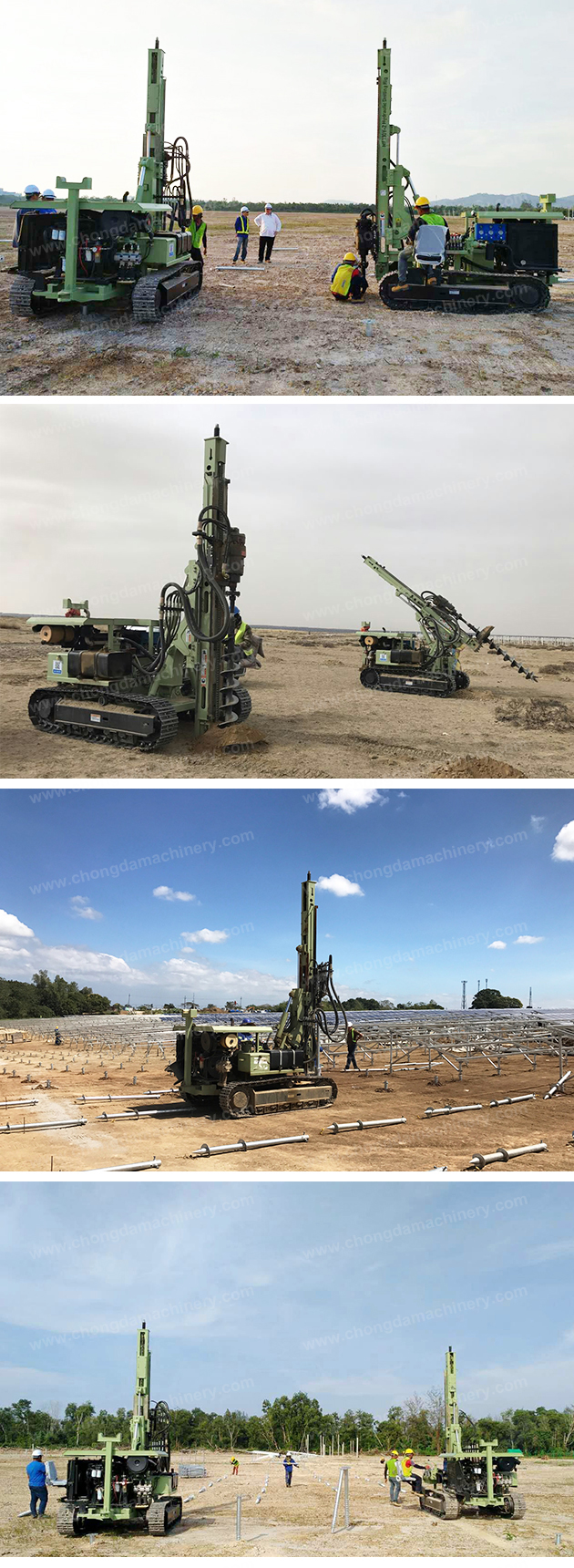

This hydraulic borehole drilling rig is widely used in water well drilling ,solar pile installation ,auger piling foundation
,geotechnical engineering foundation ,blasthole drilling construction etc
Technical Data:
|
Bore diameter(hammer)
|
90-310mm
|
|
Bore depth
|
20-120m
|
|
Air consumption
|
10-26m3/min
|
|
Air pressure
|
0.7-1.6Mpa(medium) 1.6-2.46Mpa(high)
|
|
Pipe diameter
|
76mm/89mm
|
|
For rock
|
F=6-20
|
|
Bore diameter(screw)
|
Max 400mm
|
|
Bore depth
|
0-30m
|
|
Screw pipe diameter
|
130-410mm
|
|
Once promotion
|
2000mm
|
|
Skid pitch
|
100degree
|
|
Swinging angle of skid
|
Left and right total 40degree
|
|
Rotation speed
|
0-70r/min
|
|
Host power
|
56Kw
|
|
Climb ability
|
35degree
|
|
Dimension(L*W*H)
|
4460*1950*2460(mm)
|
|
weight
|
4360Kg
|
|
Walk speed
|
0-2.5km/h
|
Advantage:
1.MCD130Y hydraulic crawler drill rig, using new type of hydraulic technology, low consumption, large rotary torque, convenient hole deflection .
2.The drilling machine structure is compact,.while the mast has adjustable compensation function.when drilling, the mast supported on the ground, borehole stability is good.
3.MCD130Y hydraulic earth ground screw pile rig has reliable performance, high efficiency, suitable for operating conditions.It also reduce costs and improve the efficiency
4.multi functional ,the drilling rig is mainly used for piling anchor, water Wells,Photovoltaic solar spiral pile, DTH blasting
construction, etc.

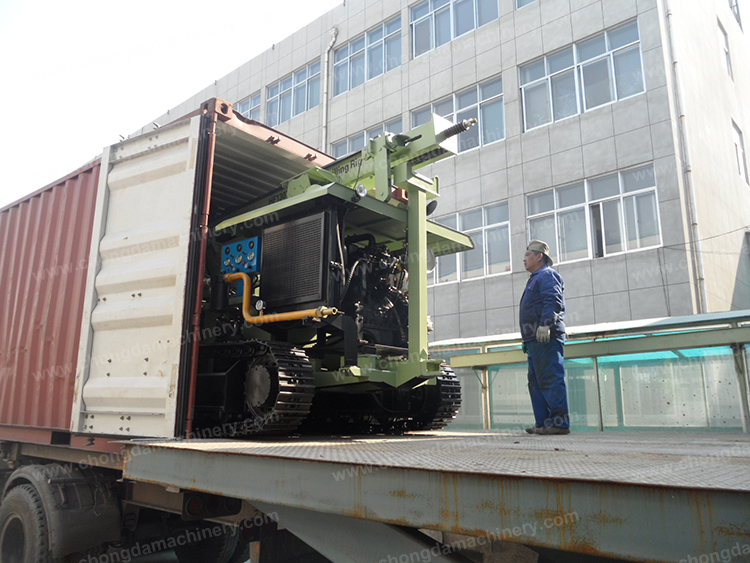

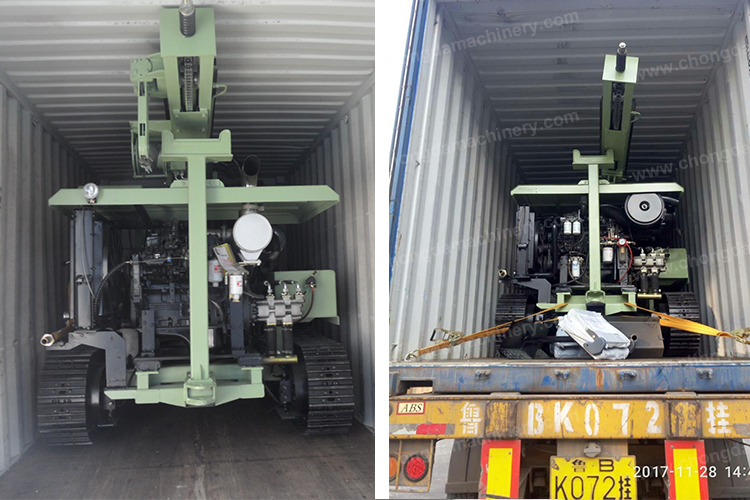

Delivery:
1.Our workers will strictly implement our packing system to ensure that the products are not damaged during transportation.
2. There are many modes of transportation to ensure that products reach customers on time.
|
Delivery Way
|
Delivery Time
|
|
By air
|
About10-20 days days after leaving the port
|
|
By sea
|
About20-30 days days after leaving the port
|
