Technical Data:
|
Impact frequeney(bpm)
|
450-800
|
|
Impact(j)
|
1000
|
|
Work pressure (bar)
|
130-150
|
|
Once promotion (mm)
|
5000
|
|
Skid pitch(º)
|
120
|
|
boom swing angle(º)
|
100
|
|
swinging angle of skid(º)
|
left and right total 40
|
|
Host power (KW)
|
84
|
|
Climb ability(º)
|
35
|
|
Dimension(L*W*H)(mm)
|
5730*2250*3000
|
|
weight(kg)
|
6760
|
|
walk speed(km/h)
|
0--2.5
|
|
Bore diameter(DTH hammer)
|
90-300mm
|
|
Bore depth
|
20-100m
|
|
Air consumption
|
10-26m³/min
|
|
Air pressure
|
0.7-1.6Mpa(medium)
1.6-2.46Mpa(high)
|
|
Bore diameter(screw)
|
Max 600mm
|
|
Bore depth
|
0-30m
|
|
Rotation speed
|
0-110r/min
|
|
Torque
|
7000N.m
|
Advantage:
1,Engine: 84KW turbocharged engine ,Yuchai famous brand,very powerful engine
2,Walking device: equipped with new walking motor and reducer, with long service life;
3,Hydraulic oil pump: PERMCO ,imported from the United States, the parallel gearbox is designed to separate the oil pump,
providing sufficient and reasonable power distribution. The unique design of the advanced hydraulic system, simple maintenance and low cost;
4,Power head device of this PV solar pile driver:America Eaton ,imported brand ,The gearbox body is made of one body, the twin motors provide more power, more torque, more durable, less maintenance cost;
5,hydraulic system of this solar piling rig :Italy Hydrocontrol hydraulic valve and hydraulic system ,stable performance ,less
maintenance and comfortable operation
6,Drilling rig chassis; Professional excavator chassis, classic durable, large weight bearing, wide chain plate width, small
damage to hard pavement;
7,this hydraulic solar piling machine has compact structure, and the mast has telescopic compensation function, during working the mast are supported on the ground, it has high borehole stability .
8,this ground screw piling machine has reliable performance, high efficiency, multifunctional applications.
9,The screwing and ramming power heads can be interchanged to adapt to different engineer ing construction technologies, which is
more adaptable and more comprehensive for solar ground mounting , can save more cost for customers
Delivery:

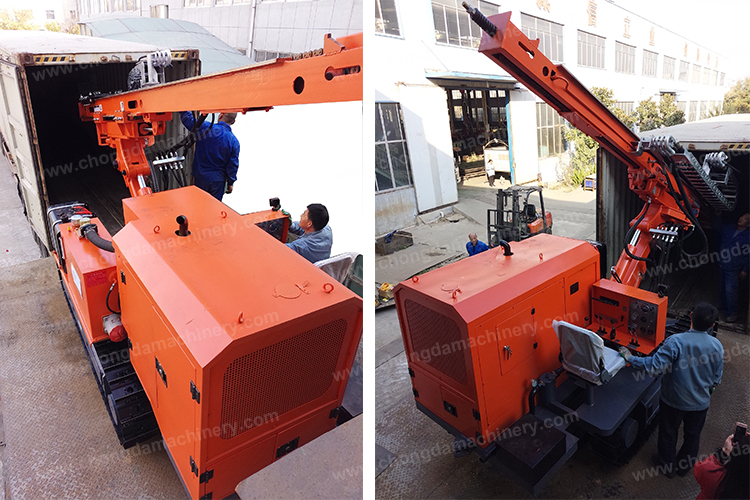

1.Our workers will strictly implement our packing system to ensure that the products are not damaged during transportation.
2. There are many modes of transportation to ensure that products reach customers on time.
|
Delivery Way
|
Delivery Time
|
|
By air
|
About10-20 days days after leaving the port
|
|
By sea
|
About20-30 days days after leaving the port
|
